Biochips in medicine: a revolution in diagnostics at the molecular level

Imagine: you donate just a drop of blood, and within an hour the doctor knows everything he needs to know — whether there are viruses in your body, which drugs you are sensitive to, whether you have a genetic predisposition to diseases. You don’t have to wait days or weeks for this. All you need is a microscopic device — a biochip, capable of analyzing tens of thousands of molecules simultaneously.

What seemed like a part of a science fiction movie a few years ago is now the reality of modern laboratory medicine. Biochips are not only changing the approach to diagnostics, but also opening the way to personalized medicine.

What are biochips?

A biochip is a miniature analytical platform that contains thousands of specialized zones (probes) capable of reacting to biomolecules. Thanks to this, the biochip simultaneously analyzes a huge number of biological indicators - genes, proteins, viruses, bacteria.

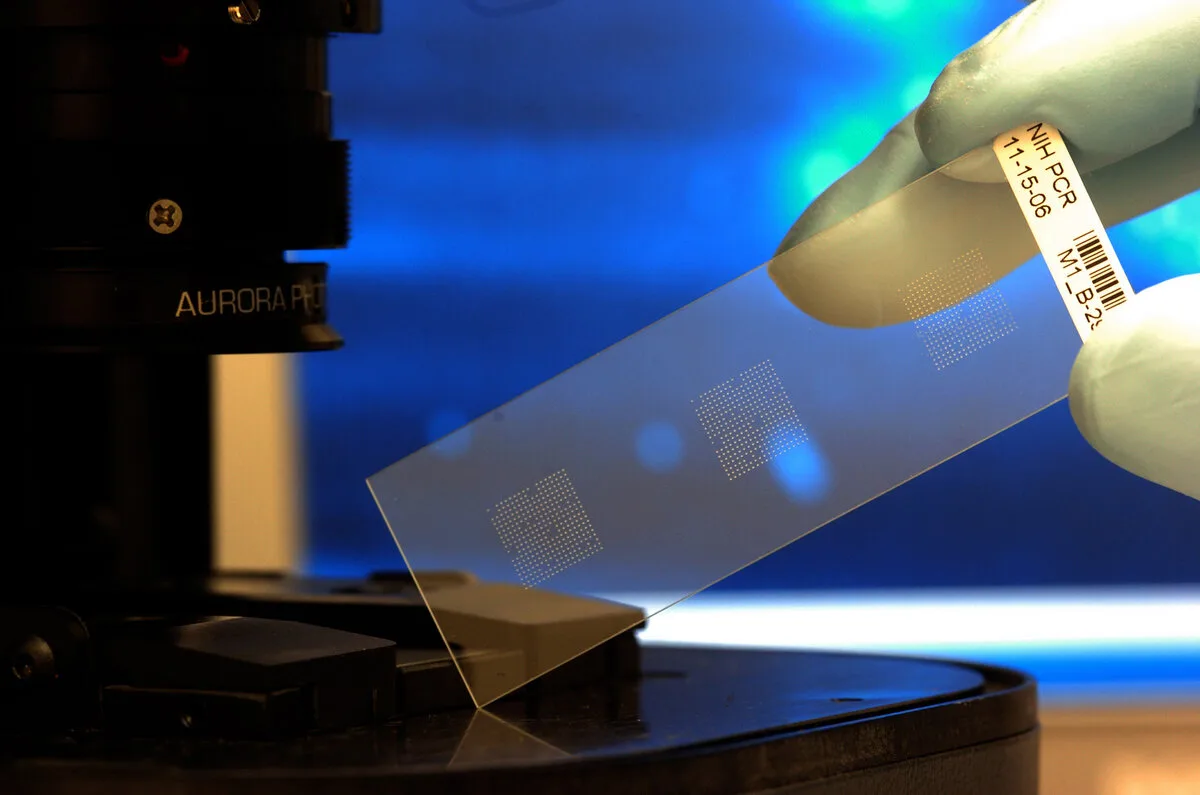

In appearance, a biochip resembles a thin plate with a cluster of microzones, each of which performs a separate diagnostic function. The information is read using a scanner that records changes in light, fluorescence, or electrical signal after the reaction between the sample and the probe.

How does a biochip work?

1. Sample application: a sample (blood, saliva, DNA, proteins) is applied to the biochip

2. Reaction: Target molecules (e.g. DNA fragments) bind to corresponding probes

3. Alarm: A signal (fluorescent or electrical) occurs in the communication zone

4. Reading: the scanner captures the signal and transmits it to the computer

5. Processing: the program analyzes the received data, forming a map of biomolecular activity

Areas of application of biochips

1. Genetic diagnostics
   – Detection of hereditary diseases and genetic mutations
   – Cancer risk assessment (BRCA1, BRCA2)
   – Selection of medications taking into account genetic characteristics

2. Oncology
   – Identification of oncogenes and tumor markers
   – Genetic profiling of tumors for personalized treatment
   – Monitoring the effectiveness of therapy

3. Infectious medicine
   – Rapid detection of infectious agents (viruses, bacteria, fungi)
   – Determination of antibiotic sensitivity
   – Testing during outbreaks and pandemics

4. Proteomics
   – Study of the protein composition of the sample
   – Diagnosis of autoimmune, inflammatory and neurodegenerative diseases

5. Food and environmental security
   – Detection of pathogens in food, water, air
   – Identification of toxic substances, allergens, GMOs

Types of biochips and application examples

Advantages of biochips

Speed: analysis results in minutes or hours
Scalability: simultaneous testing of hundreds of parameters
Accuracy: high specificity and sensitivity
Small sample volume: often just one drop of blood is enough
Automation: reducing the human factor
Possibility of personalizing treatment
Compactness: portable devices for express diagnostics

Challenges and limitations

Cost: the development and implementation of biochips remains an expensive process
The need for standardization between laboratories
The need for high-precision data reading equipment
Limited availability in routine outpatient practice
Ethics and confidentiality issues in genetic testing

Despite these barriers, the technology is actively developing, and chip prices are gradually decreasing.

The future of biochips

In the near future, biochips may become part of home diagnostic systems. Among the prospects:

Wearable devices with biosensors for continuous health monitoring
Telemedicine with the possibility of remote diagnostics
Implantable chips for patients with chronic diseases
Artificial intelligence for real-time interpretation of results

Such technologies can significantly change traditional medicine, making it more precise, personalized, and preventive.
